20+ Years Professional Custom Container House Manufacturer

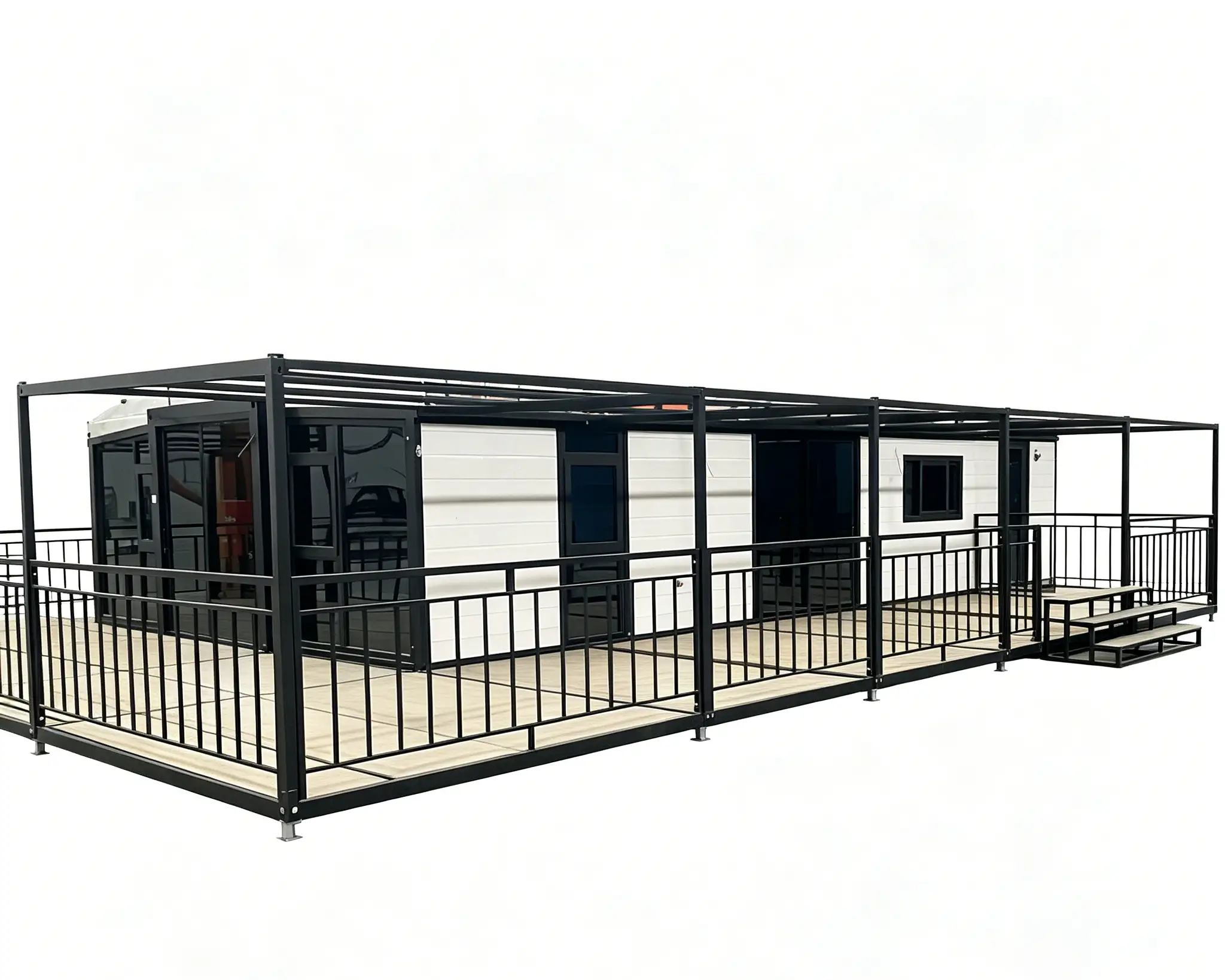

40ft Bi-Wing Expandable Container Home with Pavilion 1

40ft Bi-Wing Expandable Container Home with Pavilion 2

40ft Bi-Wing Expandable Container Home with Pavilion 3

40ft Bi-Wing Expandable Container Home with Pavilion 4

40ft Bi-Wing Expandable Container Home with Pavilion 5

40ft Bi-Wing Expandable Container Home with Pavilion 6

40ft Bi-Wing Expandable Container Home with Pavilion 7

40ft Bi-Wing Expandable Container Home with Pavilion 8

40ft Bi-Wing Expandable Container Home with Pavilion

An energy-efficient two-bedroom modular home featuring thermal-break aluminum glazing, a luxury marble-base bathroom, and moisture-resistant UV finishes. Equipped with UK-standard electrics and landscaping turf, the unit offers a premium, turn-key living solution.

Product Name / Model:

40' Bi-Wing Expandable

Expanded Dimensions (LxWxH):

Metal Engraved Board, Black Frame

Dimensions (LxWxH):

11800mm x 2200mm x 2480mm (Folded)

Roof:

Gabled, 50mm EPS Corrugated, Iron Blue-Grey

Integrated Pavilion:

U-Shaped, ~28m Total, Teak Decking

Electrical Standard:

Australian Standard (220V)

Inquiry

Write a Review

Product Introduction

This premium expandable home features a premium metal engraved exterior with a standard black frame for an elegant, durable look. It comes with an integrated 28m U‑shaped pavilion with teak composite decking and black railings, blending indoor and outdoor living. Built with 40mm EPS floor insulation and PU insulation for high‑heat zones, it is fitted with black‑frame thermally broken aluminum windows and doors. The luxury layout offers two bedrooms, a walk‑in closet, a laundry room, and a master bedroom with a stainless steel fireplace partition. Interior finishes include white matte bamboo fiber panels, SA8005 SPC flooring, carbon crystal ceilings, and a custom U‑shaped kitchen with marble countertops. Fully compliant with Australian standards, it is pre‑wired with 220V Australian wiring and sockets, plus certified plumbing and fixtures.

Detailed Configuration

Tens of thousands of products cover the whole house category, providing you with personalized design. Multiple home styles, give you more choices. To meet different budget ranges, create the ideal home for you

Structure, Exterior & Pavilion

Base Structure

Standard black frame. All steel tubes galvanized, lifting points powder-coated thick. Stainless steel screws with caps used throughout.

Floor

Full-house bamboo plywood with odorless adhesive. 40mm thick EPS bottom insulation layer. No raised platform in bathroom. No aviation plugs.

Walls

Long walls split into two sections with cover plates (as per drawing).

Pitched Roof

50mm EPS corrugated roof panel in Iron Blue-Grey. Gable ends match wall color. All components numbered for easy client installation.

U-Shaped Pavilion:

Dimensions

Left side 2m x 10m, Front 3m x 6.27m, Right side 3m x 12m.

Frame color

Black (matches main house). Railing posts painted black.

Decking

Composite wood in Teak color (No. 4). Roof: Iron Blue-Grey corrugated composite board.

Gutters & Downpipes

Black aluminum gutters and downpipes on both sides.

Stairs

Two sets of steel stairs (entrance and kitchen sliding door area), frame painted black. Designed as spliceable stairs to accommodate varying foundation heights.

Premium Features & Benefits

Main Entrances:

Thermally broken aluminum single door (black frame, double-glazed grey-tempered glass). Screen door option pending.

Two glass curtain walls (double-glazed grey-tempered glass) with insect screens.

Sliding Doors:

Three-track black titanium-magnesium alloy sliding door (1900mm wide, full height) at kitchen with self-closing and screen door.

Three-track black titanium-magnesium alloy sliding door (1200mm wide, full height) at bedroom with self-closing and screen door.

All with double-glazed grey-tempered glass.

Windows:

Thermally broken aluminum sliding window (930x930mm, black) with diamond mesh screen.

Three thermally broken aluminum floor-to-ceiling windows (800mm wide, full height) with screens.

Master bedroom: Thermally broken aluminum top-hung window (400x1000mm) with screen.

Kitchen: Thermally broken aluminum top-hung window (400x1400mm) with screen.

Bathroom: Thermally broken aluminum top-hung window (500x500mm) with hidden screen, frosted double-glazed glass.

All are black-framed, double-glazed grey-tempered glass (except bathroom).

Interior Doors: Two doors (bathroom, bathroom to laundry). Bedroom doors are vertical strip steel doors with black locks/handles.

Interior Finishes & Utilities

Layout

Two bedrooms + walk-in closet + laundry room.

Interior Walls & Ceiling

Integrated carbon crystal board. Walls: White matte bamboo fiber panel (Color 113). Ceiling: White matte bamboo board (lighter than walls).

Fireplace Area

Partition wall clad with stainless steel sheet. Base features recessed patterned steel plate.

Laundry Room

White base cabinets + white wall cabinets (thermoformed doors). Black sink and faucet. Large white floral pattern UV board between cabinets, white matte carbon crystal board elsewhere. Pre-wired for washer (outlet, hot/cold water, drain). Australian standard exhaust fan at exterior door.

Bathroom (Dry-Wet Separated):

No raised platform. Shower, toilet, mirror, and basin on left side. Frameless sliding shower door (black frame).

UV panels

Pure white for bathroom, Large white floral pattern for shower.

Australian standard small exhaust fan installed.

Kitchen

Custom U-shaped cabinets (white thermoformed doors) with wall cabinets. Marble countertop (Color: YL-6947). Electric cooktop with built-in oven, compact dishwasher, and double-door tall pantry below. Black sink (side-drain). 35cm breakfast bar near door. Pre-cut opening for oven (600x600mm) and designated fridge space (700mm wide).

Flooring

4mm SPC click-lock flooring (SA8005). Installed with seams NOT in the center of the room. Subfloor leveled, flooring adhered firmly.

Shower Floor

Sloped "high inside, low outside" for proper drainage.

Electrical

Full Australian standard wiring (purple sheath) and sockets (220V). 15A sockets for AC (height 1800mm). Outdoor power sockets with pre-wired cables. All circuit breakers (main and branch) are RCDs. Australian wiring method (earth wire not connected but not cut). All panel openings and electrical boxes fitted with gaskets.

Lighting

All recessed downlights (quantity adjusted if wattage is too low).

Trim

Full set of white trim (baseboard, crown molding, corner beads, foam rod + bottom track).

Procurement Assistance (Included)

This premium package includes procurement of the following high-end items:

INTER SALE Fireplace - Authentic wood-burning stove for the living area.

Vanity Basin with Mirror Cabinet - 80cm main cabinet with ceramic integrated basin, smart storage. Black square faucet included.

Towel Rack Set - Premium gunmetal grey 6-piece set (double fold with hooks).

Kitchen Sink - German brand stainless steel large single basin (60x45cm) with side drain, booster pull-out faucet, includes colander and soap dispenser.

Window Treatments - Day/Night Roman shades (custom sized after house completion).
