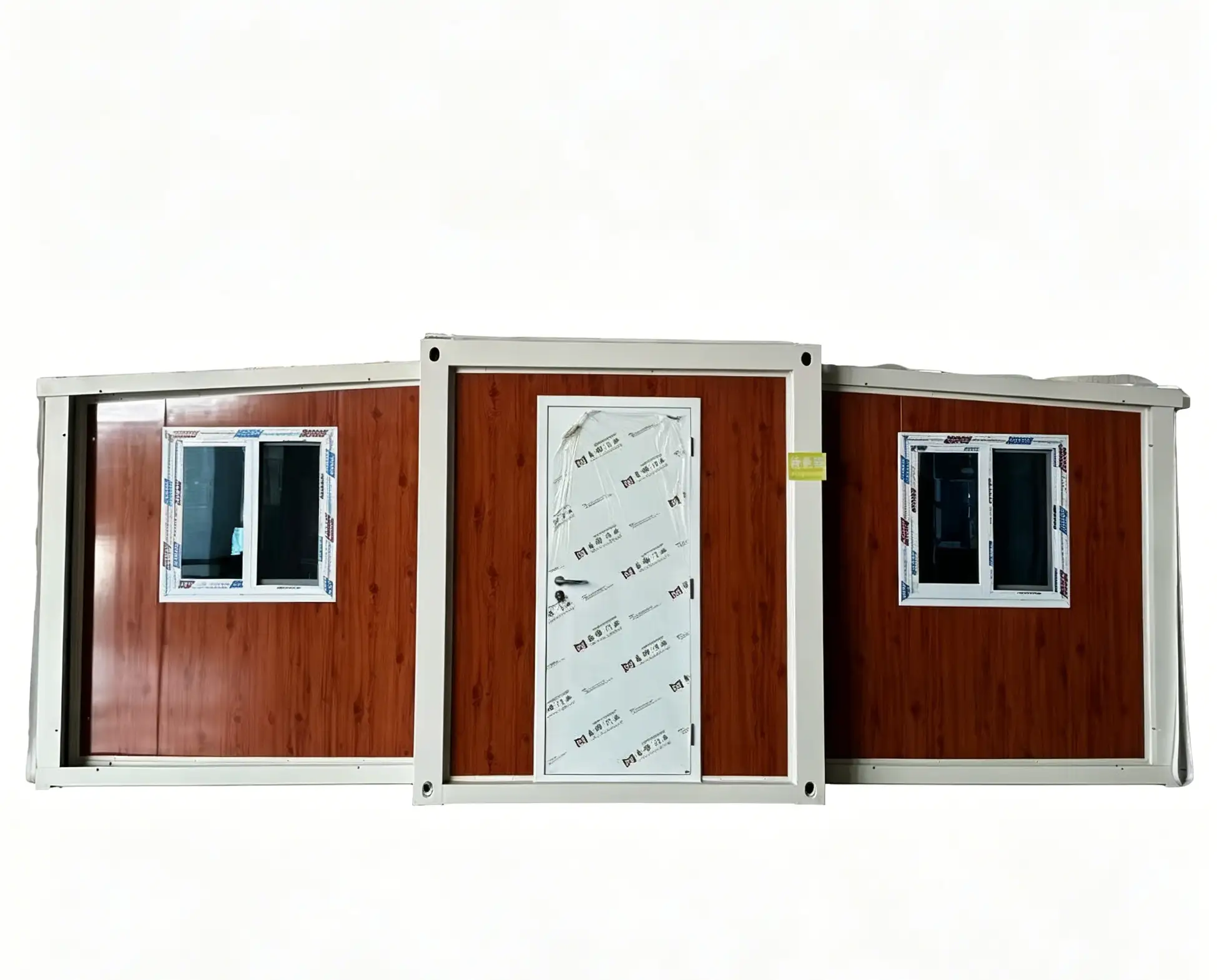

32.8ft Small Double-Wing Expandable Container House
This customized double-wing expandable house is a space-efficient housing solution designed for maximum usability. Its innovative expansion design quickly transforms a compact unit into a spacious, durable area for living or working.
5.0
Dimensions (LxWxH):
L10000mm × W4980mm × H2480mm
Frame Material:
PVC plastic floor
Internal Space:
L9740mm × W4720mm × H2380mm
Electrical Standard:
Full slope roof + 50mm composite panel
design customization
Please fill out the form below to request a quote or to request more information about us. Please be sure to upload customized requirement documents or pictures, and we will get back to you as soon as possible with a response. we're ready to start working on your new project, contact us now to get started.
Please fill out the form below to request a quote or to request more information about us. please be as detailed as possible in your message, and we will get back to you as soon as possible with a response. we're ready to start working on your new project, contact us now to get started.
Product Overview
The 10m Customized 720 Small Double-wing Expandable Container House is an innovative, space-efficient housing solution designed for maximum usability and durability. With its unique double-wing expansion design, it transforms from a compact transportation unit to a spacious living or working space in minimal time.
Dimensions
Expanded: L10000mm × W4980mm × H2480mm
Internal: L9740mm × W4720mm × H2380mm
Service Life: 20 years
Wind Resistance: Class 10 | Seismic Resistance: Grade 7
| Item | Specification | Quantity |
| Main Structure | Galvanized steel frame with plastic spraying | 1 set |
| Wall Panel | 65mm EPS foam board + magnesium oxide board | Full set |
| Door | Steel security single door | 2 sets |
| Window | PVC sliding window 920×920mm | 12 sets |
| Flooring | PVC plastic floor | 2 sets |
| Electrical System | Standard wires + switches + sockets | 2 sets |
| Roof | Full slope roof + 50mm composite panel | 1 set |
Product Introduction
The 10m Customized 720 Small Double-wing Expandable Container House features an expanded size of Length 10000mm × Width 4980mm × Height 2480mm, galvanized steel frame with plastic spraying, 65mm EPS foam insulation panels, Class 10 wind resistance, Grade 7 seismic resistance, and a 20-year service life, providing a versatile and durable solution for temporary housing, construction sites, tourist resorts, and emergency shelters.
Key Features
Innovative double-wing expandable design
High-quality galvanized steel frame with plastic spraying
65mm EPS foam insulation for excellent thermal performance
Class 10 wind resistance & Grade 7 seismic resistance
Grade B1 fire-resistant materials
Complete turnkey solution ready for use
Easy installation & low transportation cost
Customizable layout and configuration
Applications
Construction site offices & dormitories
Field work accommodations (mining, oil fields)
Tourist resorts & camping sites
Disaster relief & emergency shelters
Temporary medical clinics & classrooms
Logistics warehousing & temporary facilities
PVC地板革色卡
墙板截面
入户接电口
吸顶灯
屋顶钢架
喷塑后的钢架
室内图 (3)
室内图2 (2)
未喷涂钢架
屋顶板
