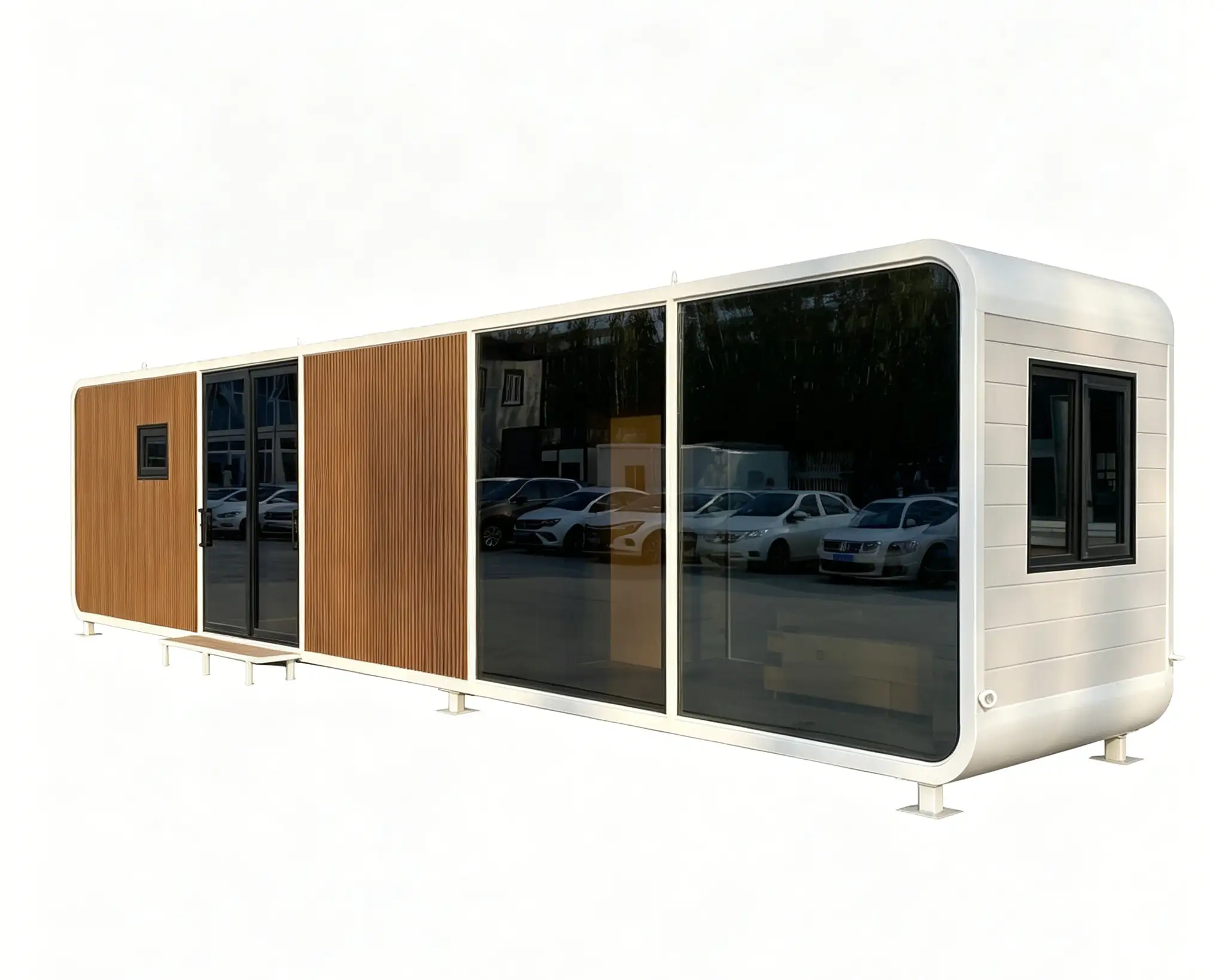

40ft Expandable Apple Cabin
Experience the ultimate in modular living with our premium 40ft expandable prefab home. Spacious design meets robust engineering for the ultimate modern living experience. Model Year 2025.
5.0
Expanded Dimensions (LxWxH):
11800×2200×2550mm≈38.7×7.2×8.4ft
Main Beams/Columns:
80×80×4.0mm Galvanized Square Tube
Flooring:
18mm MgO Board
Frame Material:
Galvanized Steel Q235
Internal Space:
11600×2040×2370mm≈38.1×6.7×7.8ft
Electrical Standard:
China Standard
design customization
Please fill out the form below to request a quote or to request more information about us. Please be sure to upload customized requirement documents or pictures, and we will get back to you as soon as possible with a response. we're ready to start working on your new project, contact us now to get started.
Please fill out the form below to request a quote or to request more information about us. please be as detailed as possible in your message, and we will get back to you as soon as possible with a response. we're ready to start working on your new project, contact us now to get started.
Product Introduction
40ft Expandable Apple Cabin is a 2025 premium modular living space that combines spacious layout and sturdy engineering for modern comfort.
Expanded dimensions: 11800×2200×2550mm; internal space: 11600×2040×2370mm. Built with a heavy‑duty galvanized steel frame (Q235), using 80×80×4.0mm square tubes for main beams and columns, finished in electrostatic black. The high‑performance wall system features 16mm metal engraved exterior panels, 40mm PU spray foam insulation, and 8mm OSB plus 8mm carbon crystal interior panels for excellent thermal efficiency.
Flooring uses 18mm MgO board. Equipped with a Chinese standard electrical system (customizable to international certifications), including a 2P63A main circuit breaker, RCD protection, 22 downlights and configurable 3‑pin sockets. It includes a full‑height thermal‑break aluminum sliding entrance door, top‑hung casement windows and a double‑glazed tempered blue‑film glass curtain wall, with all glass customizable on request.
Premium Features & Configuration
Robust Frame Structure
High-Performance Wall System
Advanced Electrical System
Premium Door & Window System
Robust Frame Structure
1
Main Beams
80×80×4.0mm Galvanized Square Tube (Q235)
2
Columns
80×80×4.0mm Galvanized Square Tube (Q235)
3
Purlins
40×60×1.2mm Galvanized Square Tube (Q235)
4
Light Steel Studs
40×40×1.2mm Galvanized Square Tube (Q235)
5
Frame Color
Electrostatic Spray/Black
